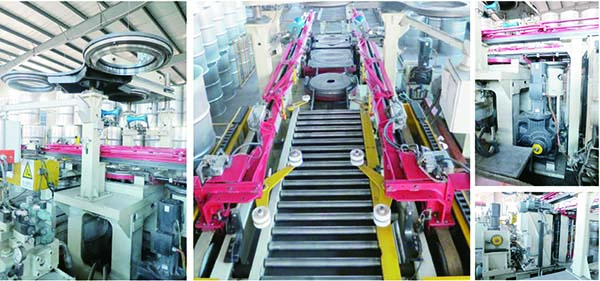

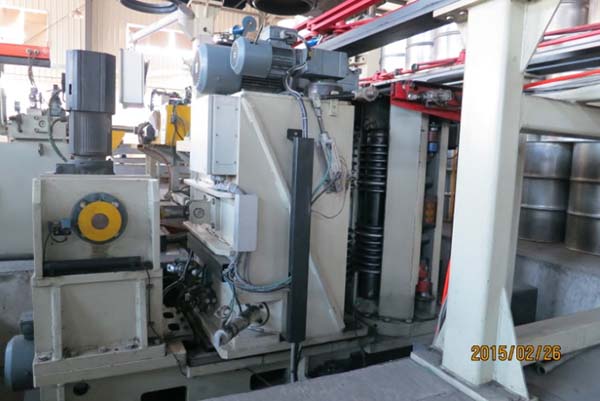

VDF-M103型自动立式桶身成型机

VDF-M103 Type Automatic Vertical Drum body Forming Machine










  1.   一、用途
      One, application
  1.
  2.   1、它是钢板焊接完成后对圆形桶身进行成型的设备;
      1. It is the equipment for forming the welded steel sheets into the round drum body.
  3.
  4.   2、实现立式快速成型,包括翻边、胀筋、波纹的成型过程加工。
      2. realize vertical speed forming process, including flanging, beading, corrugation.



  1.   二、性能特点
      Two, characteristics
  1.
  2.   1、主要功能有:自动调整桶身高低、翻边上磨具3个工位相互切换、胀筋高度线性调整、2-3道筋自动选择工艺、4工位波纹轮自动切换等;
      1. The main functions include automatic adjustment of the height of the drum body, 3 stations changing over of flange and mould, the liner adjustment of the beading height, automatic selection of 2 or 3 beadings, and 4 stations corrugation wheels change automatically,ect.
  3.
  4.   2、提高了工艺修改速度,降低了劳动强度,适应了目前小批量多品种的生产需要;
      2. Improve the technical changing speed and reduce the labour intensity, which is suitable for the current production requirements of small batch with mutiple kinds.
  5.
  6.   3、能适应桶直径560、571的加工,丰富了产品品种,大大提高了企业的产品竞争力;
      3. Be suitable for processing the steel drums with the diameter of 560mm and 571mm, which enrich the varities of the products and greatly improve products competitiveness of the enterprise;
  7.
  8.   4、设备将翻边、胀筋、压波纹三工位合一,安装维修方便,节省空间;
      4. The combination of the three stations, flanging, beading and corrguation make the installation and maintenance convenient and saving space.
  9.
  10.   5、桶身运送过程由机械手夹持运送,提高效率,稳定可靠;
      5. The conveying process of the drum body is clamped by the mechanical hand, which is stable and improve the work efficiency.
  11.   6、设备采用了高性能PLC及触摸屏,实现了数字调整,操作简单方便快捷。
      6. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.
  12.

  1.
  2.   三、主要技术参数
       Three, main technical parameters

参数设置
Parameter setting

单位
unit

参数值
Parameter value

备注
Remarks

速度
Speed

个/分钟
Nos per minute

12

720个/小时
720 per hour

电压
Voltage

V

380

三相五线制
Three phase five wire system

总功率
Total Power
KW 60
用气量
Gas Consumption
L/min 45

适应桶高
Drum Height suitable to

mm

880-920



适应桶径
Drum Diameter suitable to
mm 560、571
胀筋高度
Beading Height
mm 1~11.5 线性变化
Liner change
波纹深度
Corrugation Depth
mm 1~7 线性变化
Liner change
波纹种类
Corrugation Type

type
5 切换工位4个
4 Switching station
翻边上模具
Flanging and Feeding moud

type
3 预留3个切换工位
Reserved 3 switching station

机械外形尺寸
Machine overall dimension

mm(L*W*H)

5632 * 2880 * 2980

H为离地面高度(坑净深度422),L为传送线方向
H is the height from the ground level(the net depth of the pit is 422),L is the direction of the transmission line
