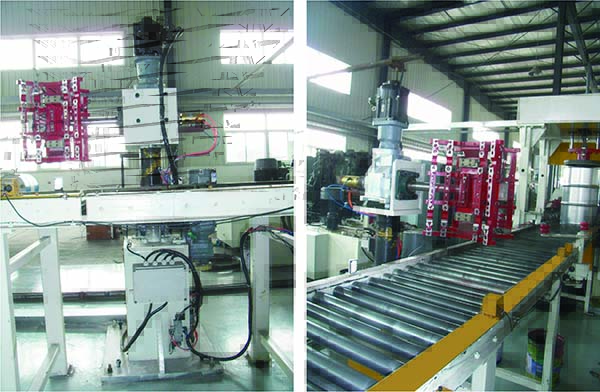

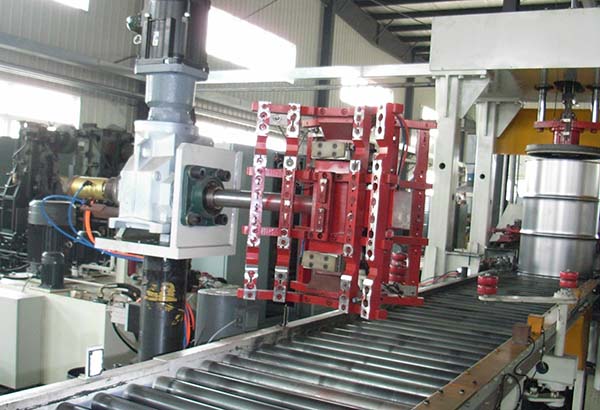

DTS-M104型自动翻桶机

DTS-M104 Type Automatic Drum Turner










  1.   一、用途
      One, application
  1.
  2.   1、 对桶身进行180度翻转的设备。
      1. It is the equipment which can rotate the drum body with 180 degree.
  3.

  1.   二、性能特点
      Two, characteristics
  2.   1、它完成桶身180度翻转,为桶盖、桶底卷封切换桶身位置;
      1. It can make the drum body rotated 180 degree and change the position of the drum body for the Top & Bottom seaming.
  3.   2、直立翻转,单电机驱动,效率高,动作少,能源消耗低;
      2. It can rotate vertically and driven by single motor, which has high efficiency, less movement and low enegry consumption.
  4.   3、根据桶高自动调整对桶的抓取高度;
      3. It can clamp the position of the drum accroding to the drum height automatically.
  5.   4、在无需使用翻桶机时,可进行参数选择,设备自动完成选择动作;
      4. Under the cirmstances that the drum turner are not to be needed, the parameter can be selected and the equipment can complete the selection automaticallty.
  6.   5、实现立式翻转,无需其他辅助设备,适应整体流水线需要,安装维修方便;
      5. Realizing vertically rotating without other auxiliary equipments and meet with the need of the whole assembly line, which is convenient to be installed and maintained.

  6、设备采用高性能PLC及触摸屏,实现设备参数数字调整,操作简单方便快捷。
  6. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.



  1.
  2.   三、主要技术参数
       Three, main technical parameters

参数设置
Parameter setting

单位
unit

参数值
Parameter value

备注
Remarks

速度
Speed

个/分钟
Nos per minute

15

900个/小时
900 per hour

电压
Voltage

V

380

三相五线制
Three phase five wire system

总功率
Total Power
KW 6.5
用气量
Gas Consumption
L/min 0.75

适应桶高
Drum Height suitable to

mm

880~920



适应桶径
Drum Diameter suitable to
mm 560、571

机械外形尺寸
Machine overall dimension

mm(L*W*H)

900 * 1500 * 2300

L为传送线方向
L is the direction of the conveying line
